Hi Reed,
look at this photo



Rüdiger

Hi,
the third wire is the ground of both cables (under the isolation).

Rüdiger

Hy,
for some days Nucore Wiki side shows this

It' s done, sorry for disturb. Thank you for your patience.
I' ve unpacked with a Linux machine in the duty and now there is an nucore file on the USB stick.

Rüdiger

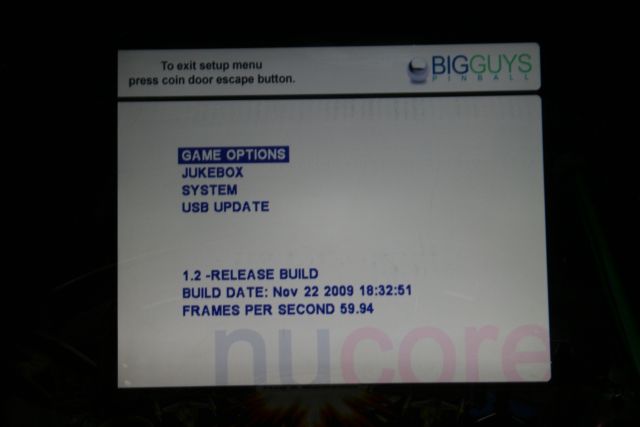

I' ve downloaded twice. After unzipping with windows 7 the USB Stick contains "release12.tar.gz" and "release notes.txt"

I see my fault, I have no nucore file. The file must be uncompressed with Linux gunzip and tar program tomorrow.

Rüdiger

I have downloaded the file and unzipped the files too a fat32 formatted usb stick ("Download this file, extract it to a USB thumb drive, and follow the upgrade procedure in the manual (page 42.)") I went too the pin and after the program tells me to put the stick into a usb slot, I do so. ...

Hi Chuck, was is wrong? I cannot update the code. Look at the date of the logs, not in this year :? ************************************************************************** Nucore - 1.01 -RELEASE BUILD Copyright Big Guys Pinball LLC 2009 EMU Version: 1.01 -RELEASE BUILD Build Type : RELEASE Build ...

Hello Keith
Arghh, now I understand. I was on a wrong way, because there were a label "WARRANTY VOID IF REMOVED" over J4. I thought the connector place is L1. Now is clear. Thank you very much

Rüdiger

Hello Jazman,
thanks for your answer. Do you mean this part of the schematic?

Rüdiger

@chuck I know the wiki from nucore, but there is no information When using this modified PCB, you should not have both the PRISM card and 1/8" input connected simultaneously as the results of which are unknown (ie: you may damage one of the connected sources). NOTE: Images temporarily removed a...

If you take a look at the pin layout on the p2k pc ( http://www.pinrepair.com/pin2000/index.htm#monitor ) pins 13 and 14 are the HS and VS signals. Which one should be connected to the S pin on that 5pin CGA connector on the converter card? Sam Hi Sam, I' ve an another CGA/VGA convertor, but it is ...

@chuck
You mean CGA to VGA Convertor? Sam wants to connect the original Pinball2000 computer to a TFT

Rüdiger

Hello Sam, you are right. The CGA to VGA converter is the only thing you need. You cut the CGA cable and connect the wires to the CGA connecter so called "Spin CGA Signal Input" on the left side of the converter. The VGA cable is connected on the top. On the right side you can trim the res...
